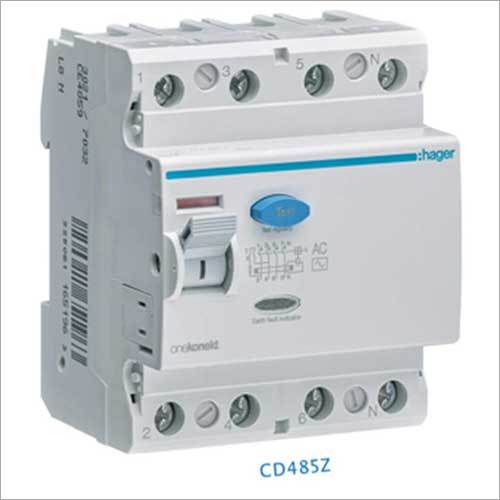

Hager CD485Z Earth Leakage Circuit Breaker

Breaking And Opening Capacity

1,5 kA

Model Name/Number

CD485Z

Brand

Hager

Frequency

50Hz

Withstand Not Tripping On 8-20 uS Wave

0,25 kA

Total Power Loss Under In

30,2 W

Rated Residual Operating Current:

30 mA

Rated Conditional Short-circuit Current Inc According To En 61008-1

6 kA

Power Loss Per Pole At In

11,9 W

Number Of Mechanical Operations

4000

No Of Pole

4

Neutral Position

Right

Fixing Mode

Din-Rail

Electric Endurance In Number Of Cycles

2000
